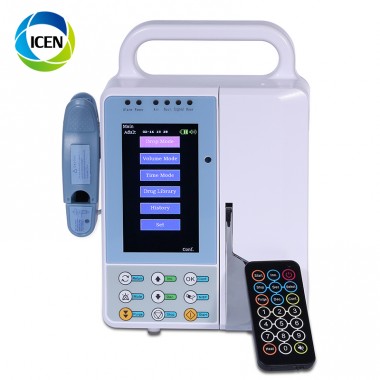

IN-G076-1 Small medical high quality multi-functional Micro clinical anesthetic all iv mri compatible electric ce infusion pump

1. 4.3 inch color LCD with backlight
2. Three working modes: Rate/Volume/Time mode
3. Purge, KVO function
4. Heating and remote control functions
5. Audible and Visible alarms
6.Alarm: Infusion Complete, Empty, Faulty Signal, Misoperation, Occlusion, Door Open, Air Bubble, Low Battery, Setting Error, AC power off, Idle
7. Calibration function, suitable for any brand disposable IV set

Environment Requirements: Transport
Ambient Temperature: -30℃~+55℃
Relative Humidity: 20%~95% (non-condensing)
Atmosphere Pressure: 70kPa~106kPa
Storage
Ambient Temperature: -30℃~+55℃
Relative Humidity: 20%~95%
Atmosphere Pressure: 70kPa~106kPa
Operation
Ambient Temperature: +5~+40℃
Relative Humidity: 20%~90%
Atmosphere Pressure: 86kPa~106kPas

Technical Specifications
Pump Type: Drip type infusion pump
Pumping Way: Peristalic fingers
Adjustable Drop Rate Range: 1~400 drops/min (step: 1 drop/min)
Adjustable Volume Rate Range:1~1200 ml/h (when 1~99.9 ml/h, step: 0.1 ml/h; greater than 99.9 ml/h, step: 1 ml/h)
Flow Precision:Within±3% (using the IV set appointed by the manufacturer or calibrated high quality IV set) Mechanical precision: within ±2%.
Purge Rate:800 ml/h
KVO Rate:1 ml/h (1~300 ml/h);
3 ml/h (greater than 300 ml/h);
Infusion Volume Range: 1 ml~9999.9 ml (step: 0.1 ml)
Maximum Accumulated Volume:9999.9 ml (step: 0.1 ml)
Time Range:1 min~9999 min (step: 1 min)
Occlusion Alarm Threshold: High: 800 mmHg±200 mmHg (106.7kPa±26.7kPa)
Medium: 500 mmHg±100 mmHg (66.7kPa±13.3kPa)
Low: 300 mmHg±100 mmHg (40.7kPa±13.3kPa)
Alarm: Infusion Complete, Empty, Faulty Signal, Misoperation,
Occlusion, Door Open, Air Bubble, Low Battery, Setting Error, AC power off, Idle.
Air Bubble Detector: Method: ultrasonic wave, sensitivity: more than 25 μL
Fuse: F1AL/250V ("F" indicate fast,"L" indicate low breaking capacity),
2 pcs (installed inside pump).
Power Supply: AC 85~265V, 50/60Hz;
Internal Battery:11.1V rechargeable li-ion battery. Capacity: more than 2000mAh;
the pump can work more than 4 hours at the flow rate of 25 ml/h after charging for
8 hours (Medium rate specified by GB 9706.27-2005).
Power: less than 40VA
Size: 188 mm(L)*198 mm(W)*228 mm(H)

Weight: 2.2KG
