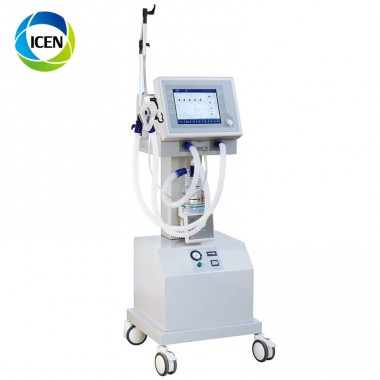

 Medical portable mobile icu mindray ventilator machine price

Microprocessor controlled, Pneumatically driven electronically controlled

10.4” TFT display screen for ventilation parameters

Humidifier with temperature adjustment

"With medical air compressor, built-in backup battery up to at least 4 hours

Applied for Adult and Pediatric

Main technical specifications:

Breathing

Mode: A/C,SIPPV(VCV),IPPV(VCV),SIMV,PSIMV,CPAP,PCV,PEEP,SIGN,SPONT,MANUAL

Tidal Volume: 0~2000ml

I/E Ratio: 4:1 ~ 1:4

Respiration Frequency : 1~99 bpm;

IMV Frequency : 1~20 bpm

Lung compliance: ≤30 mL / kPa

Oxygen Concentration: 21%~100%

Maximum Minute ventilation: ≥18L / min

Pressure Limited: 1.0kPa~ 6.0kPa

PEEP: 0 ~ 1.0 kPa

Ptr: -1.0kPa~1.0kPa

Max .Safe Pressure: ≤6.0 kPa

Trigger Method: Pressure Trigger, Volume Trigger

Control Method: Pressure Control,  Volume Control

Ventilation monitoring:

Tidal volume,Minute ventilation,Frequency, Airway Pressure, I/E, inspiration time, PEEP, FiO2, PCV,PSV

Waveform of time-airway Pressure and so on.
