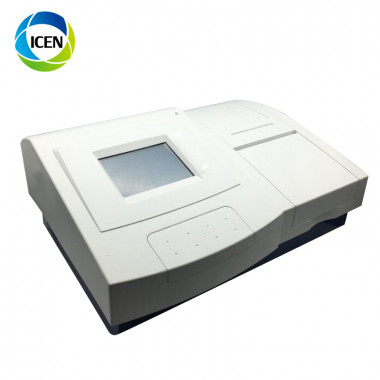

IN-B149 chinese medical fully automatic microplate portable micro plate elisa reader device
Features:
- Graphical operating interface,menu designed for convenient use
- High brightness and large size LCD,with touch screen input
- Flexible Plate layout with blanks, standards,samples,reference,QC in one screen
- Single or dual wavelength measurements,comprehensive qualitative and quantitative data_evaluation functions with cut-offs,curve-fits and transformation formulas
- Proven optical system with 8 channel optical fiber scanning,auto plate centering system positions the center of the cell accurately
- Performing 12 different tests just in one plate
- Multi-forms in result output including patient comprehensive report
- Auto Lamp adjustment and auto calibration,improve the efficiency of the system and reduce the cost
- Optional external mouse action and standard keyboard
- with serial RS-232 interface and parallel interface
- Easy connect to PC, comprehensive functions with Found Wordstations PC software
Technical Specification:- Photodetector:Silicon Photodiode
- Light source:Controlled tungsten halogen lamp
- Wavelength range:400nm~700nm
- Indication range:0.000OD~4.000OD
- Resolution:0.001OD
- Accurancy:±1.0% at 1.0OD,450um
- Reproducibility: ±1.0% at 1.0OD,450um
- Standard filters:405,450,492,630nm
- Additional filters:on request,filter wheel for up to 8 filters
- Shaking:Linear Shaking, 3 speeds
- Display:Touch screen(320*240)LCD
- Interface connections:USB,Serial RS-232,parallel printer interface,PS2 mouse&keyboard
- Power supply:100~240V,50~60Hz
- Dimensions/weight:460*350*197mm/11kg
