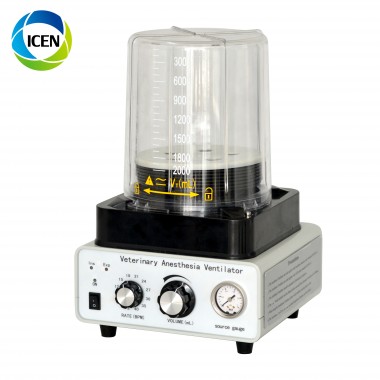

IN-V1B  Hospital Portable  Medical Breathing machine  Veterinary Animal ventilator

Feature

 1. ISO Certificated

 2. Alloy metal stents, spray technology, very durable

 3. Stainless steel pressure monitoring gauge, the scope: 0-1Mpa, 0.05 scale readable.

 4. Protective power switch and back-up power interface, effective to eliminate the accident happens.

 5 .New generation veterinary anesthesia ventilator design and architecture platforms

 6. Professonal veterinary ventilator operation, some parameter could be set automatically.

 7. Adopt power supply rejection grid anti-jamming technology, more stable performance.

 8. Good mobility performance,pass vibration test.

 9. Easy operation, simple and clear.

 10. International standard interface, could match with any anesthesia machine.

Technical Specification

 1.Drive:Pneumatic driven and electrical control

 2.Operation: Button

 3. Sensor Type: Rotor sensor

 4. Respiratory mode:IPPV,MAN

 5. Tidal Volume:50~1600mL

 6. I:E: 1:2

 7.BPM:3-40bpm

 8.TV monitoring:20~300 mL,300~2000 mL

 9.Airway pressure monitoring:-20-100cmH2O

10. Gas source gauge monitoring :0-1MPa

11. Monitor:Inspiratory indicator,Expiratory indicator,Power indicator

12. Small animal bellows,TV:0~300mL

13. Big animal bellows,TV:300~1600mL

 Power supply requirement

1. Power:220V,50HZ or 110V,60HZ
2. Input power: No more than 60VA
3. Maximum input current:5A
4. Main power entrance fuse: 250V 5A φ5X20(F)
