Icen Technology Company Limited

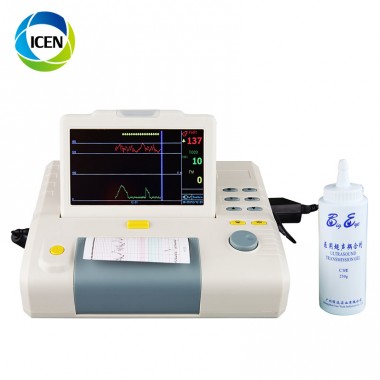

IN-C010-1 Portable  Maternal  Pregnant Baby Heartbeat Rate Scanner  Digital Fetal Monitor

 Compact and lightweight design for Portable Fetal Monitor

7" color TFT screen, folding 90 degrees
Built-in high dot matrix thermal printer with long life
A standard patient event marker and a clinical event marking button to mark clinical events separately.
Auto fetal movement are available.
Multi-crystals, wide beam forming, high sensitivity ultrasound transducer, low ultrasound power
AC or Li-ion battery
More than 12 hours data storage, which can be recalled and reprinted.

Technical Specifications for Portable Fetal Monitor:

Fetal Heart Rate Multi-crystal,pulsed doppler,high sensitive
Transducer Strengh <5mW/cm2
Working frequency 1.0MHz
Signal processing special DSP system and mode recognization
Measurement range 50~210 bpm

Alarm Range: High: 160 170 180 190 bpm

Low : 90 100 110 120 bpm

The largest audio output power 1.5W

TOCO

Measurement range 0~100units

Battery working time 2 hours(no printer working)
Speaker 1W
Power Supply AC 220V±20%,50Hz or 8.4V Li-battery
Power consumption <20W
Working Environment Temperature: 10~40 ℃, RH: 10~80%

Transducer Acoustic Output Under the requirements laid down in IEC 1157, 1992, the peak negative acoustic pressure does not exceed 1Mpa. The output beam intensity does not exceed 20mW/cm2 and the spatial-peak temporal-ave rage intensity does not exceed 100mW/cm2

Dimension 295W×240D×73H×mm
Net weight 1.75kg

Standard: FHR, TOCO, FM
Optional: Twins,FAS(Fetal acoustic simulator)

Our company is a leading exporter and supply chain service provider of medical machine with more than 8 years' experience.
Our main products include X-ray machine, B ultrasound scanners, ECG, patient monitor, ICU equipment, Lab equipment, and other related medical disposables. We have exported products to more than 50 countries and built long term partnerships with clients.
Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.

• Top Quality: We have strict quality control system and enjoy good reputation in the market.
• Excellent Service: We treat clients as friend and aim at building long term business relatiionship.
• OEM Accepted : We Can print your own logo on the products.
• Unbeatable Price: We always ensure high price performance to benefit our customers.
• Timely Delivery: Your order shall be shipped once finished .
• After-Sale Service:All Products Have One Year Warranty.

1. We ship the fetal doppler machine by air or sea for you.

2. Our fetal doppler machine with standard export packing.

3. No matter what delivery way , all depending on your actual requirements.

• How to buy your products ?Do you have distributor in our country?

You can buy the products from our company directly.Normally the procedure is:Sign the contact ,payment  byT/T, contact the shipping company to delivery the goods to your country.

• What is the warranty?

The free warranty is one year from the day of Commissioning qualified.

• Can we visit your country ?

Of course,we will prepare for everything in advance if it is necessary .Generally,it is require that customers must have build agency relationship or business relationship with our company.

• How long is the validity of quotation?

Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .

• Do you have the CE certificate ?

Yes, most of our products have the CE certificate.
