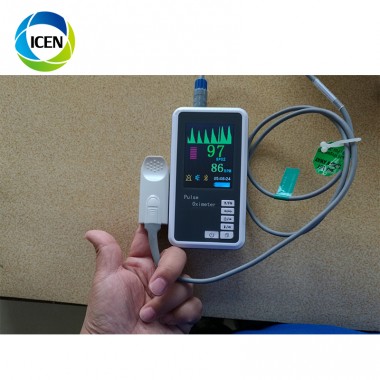

IN-C014-2 hospital adult child infant neotate parameters handheld pulse oximeter
Features
1. Two parameters:SPO2, and Pulse Rate
2. Spo2 waveform(PLETH),PR strength display
3. 2.8 inch color TFT LCD in real time display, displayable in big font and big screen
4. Long time monitoring and sleeping monitoring
5. Audio and visual alarm when parameters exceeded and sensor-off
6. Built-in rechargeable Li-ion battery, up to 15-hour running time
7. Battery capacity indicator. Automatic shutdown for power saving
Standard accessories
one Adult finger SpO2 sensor
one AC charger
Technical Specifications
1. General
| Monitoring Parameters | SpO2,PR,PLETH,Pulse strength |
| Signal sockets | SpO2 socket,PR socket,USB socket(for AC power) |
2. Display screen
| Type | 240 × 320 dot matrix color TFT LCD screen |
| Display area | 43mm×58mm |
3. Functions
| PLETH | The oximeter can display PLETH waveform |
| Audio and visual alarm | The speaker sounds the alarm and the parameter’s measurement will become in red to flash on the screen. Also the same when sensor-off. |
| Prompting | Icons of battery capacity, pulse sound switch and alarm sound switch. |
| Power saving | The oximeter will automatic shut down to save power. The time is settable. |
4. Power Requirements
AC power adaptor
Input: AC 100 V~240V, 50/60Hz, 5VA
Output: D.C. 5V
Internal battery
Type: D.C. 3.7V/3000mAH Li-ion rechargeable battery
Run Time: 15-hour continuous operation with a new, fully charged battery (environment temperature is 25℃)
Recharge time: 8 hours
5. Environment
Temperature
Operation: 0℃ ~ 45 ℃
Transportation and storage: -20℃ ~ 60℃
Humidity
Operation: 15% - 95 %( noncondensing)
Transportation and storage: 10% - 95 % (noncondensing)
Altitude
Operation: 86 KPa ~106 KPa
Transportation and storage: 50KPa~106 KPa
6. Parameter Specifications
SpO2
| Patient | Adult, pediatric,neonate |
| Range | 0% - 100% |
| Resolution | 1 % |
| Accuracy | 70% - 99%: ±2 % |
| 0% - 69% | Unspecified |
PR
Range: 0 bpm ~250bpm
Resolution: 1bpm
Accuracy: 2bpm
Our company is a leading exporter and supply chain service provider of medical machine with more than 8 years' experience.
Our main products include X-ray machine, B ultrasound scanners, ECG, patient monitor, ICU equipment, Lab equipment, and other related medical disposables. We have exported products to more than 50 countries and built long term partnerships with clients.
Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.
Our Services
1. We ship the pulse oximeter by air or sea for you.
2. Our pulse oximeter with standard export packing.
3. No matter what delivery way , all depending on your actual requirements.
FAQYou can buy the products from our company directly.Normally the procedure is:Sign the contact ,payment byT/T, contact the shipping company to delivery the goods to your country.
The free warranty is one year from the day of Commissioning qualified.
Of course,we will prepare for everything in advance if it is necessary .Generally,it is require that customers must have build agency relationship or business relationship with our company.
Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .
Yes, most of our products have the CE certificate.
