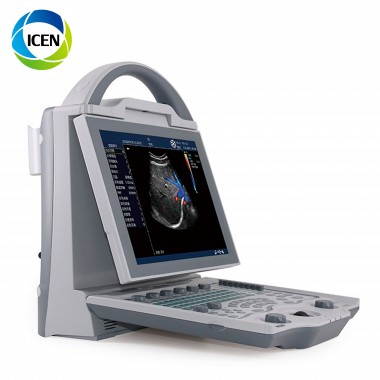

IN-A12 Portable Laptop Color Doppler  Ultrasound Scanner Diagnosis Ultrasound Machines Trolley

1.  Designation: DCU12 Full Digital Color Doppler Ultrasound Scanner

2. Application: Leading image process technical and advanced and practical clinical solution method. Applicable to diagnosis of abdominal organs(trans-vaginal included), superficial organs and cardiac. With scalable design, upgrade continuously, fully meet the needs of clinical application extension.

3. System feature:

3.1 Adopt A8 embedded system. High reliability to keep virus away thoroughly.

3.2 Operation system: Limux system, English/Chinese menu switch alternatively.

3.3 Full digital multi-beam formation technology, high precision delay dynamic receiving focusing, ultra-wide frequency imaging, adaptive image optimization processing technique, adaptive vessel imaging, adaptive Doppler imaging.

3.4 Ultra-wide frequency full digital beam former: Dynamic focuse

3.5 Two-dimensional grey scale imaging unit

3.6 M imaging unit

  3.7 Visible and adjustable dynamic range

  3.8 Two-dimensional imaging unit, grey scale ≥ 256 level, excellently detailed and comparative resolution and full-screen uniformity

4. Parameters:

4.1 Specification parameters:

1. Grey scale: 256 level

2. Color scale: 256 level

3. Display: 10.4’flicker-free high-resolution medical color LCD

4. Power: 100-240V, 1.2-0.6A    frequency: 50-60Hz

5. Adapter output: DC12.8V  3.0A

6. Power consumption: ≤100VA

7. Main unit size: 256*150*326(mm, Length*width*height)

8. Unit net weight: 4.5Kg(Accessories not included)

4.2 Multi-media and accessory equipments

1. Video recorder

2. I-station integral work station, realize image storage, report form and cloud print

3. U flash disk (file management, software upgrade and one-key storage) and DICOM port, convenient for data management and available to removal transmission.

4. Dual-mode TV output: PAL/NTSC

 4.3 Probe port:

 Two enabled probe ports, automatic identification technology, available to optional probe configuration.

4.4 Language:

 Menu operation, interface language: English/Chinese switch alternatively

Our company is a leading exporter and supply chain service provider of medical machine with more than 8 years' experience.
Our main products include X-ray machine, B ultrasound scanners, ECG, patient monitor, ICU equipment, Lab equipment, and other related medical disposables. We have exported products to more than 50 countries and built long term partnerships with clients.
Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.

• Top Quality: We have strict quality control system and enjoy good reputation in the market.

• Excellent Service: We treat clients as friend and aim at building long term business relatiionship.
• OEM Accepted : We Can print your own logo on the products.
• Unbeatable Price: We always ensure high price performance to benefit our customers.
• Timely Delivery: Your order shall be shipped once finished .
• After-Sale Service:All Products Have One Year Warranty.

• How to buy your products ?Do you have distributor in our country?

You can buy the products from our company directly.Normally the procedure is:Sign the contact ,payment  byT/T, contact the shipping company to delivery the goods to your country.

• What is the warranty?

The free warranty is one year from the day of Commissioning qualified.

• Can we visit your country ?

Of course,we will prepare for everything in advance if it is necessary .Generally,it is require that customers must have build agency relationship or business relationship with our company.

• How long is the validity of quotation?

Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .

• Do you have the CE certificate ?

Yes, most of our products have the CE certificate.
