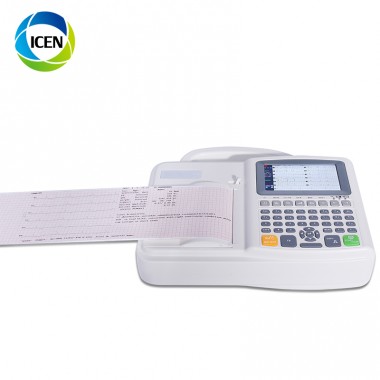

IN-H021-1 Digital Electrocardiograme 12 Channel ECG Machine With Printer

  • FOB Price:US $300-1000 / Set(s)
  • Min.Order:1 Set(s)
  • Production Capacity:500sets Per Month
  • Payment Terms:L/C , T/T , D/P , PayPal , Small-amount payment , Money Gram , EXW , FCA
  • Favorite
Icen Technology Company Limited

Business Type:Manufacturer

Country/Region:China

Ddu Verified

HOT Rank

6/10

Product Information

  • Model:IN-H021-1
  • Certification:CE
  • Net Weight:1.45kg
  • Packaging Details:carton or woode cases
  • Brand Name:ICEN
  • Trademark:ICEN
  • Place of Origin:Guangdong China
  • Warranty:1 year
  • After-sale Service:Return and Replacement
  • Certificate:Certificate
  • Application:ICU,Patient,Hospital
  • Working Mode:Manual/Auto
  • Sampling Rate:1000Hz
  • A/D Converter:14bit

Description

IN-H021-1 Digital Electrocardiograme 12 Channel ECG Machine With Printer

Product Description


Features for ecg electrode price:

1.3 channel ECG machine with interpretation

2.5.0” color TFT LCD display

3.Simultaneous 12 leads acquisition and 1, 1+1, 3 channel (Manual/Auto) recording with high resolution thermal printer

4.Manual/Auto working modes

5.Use digital isolation technology and digital signal processing

6.Baseline stabilization inspection

7.Full alphanumeric silicon keyboard

8.Support U disk storage

9.Support USB function (Optional)



Technical Specifications for ecg electrode price:

Lead: Standard 12 leads

Acquisition: Simultaneous 12 leads

A/D Converter: 14bit

Sampling Rate: 1000Hz

Working Mode: Manual/Auto

Interference Filter: AC Filter and EMG Filter

CMMR: ≥100dB (with AC filter)

Input Circuit: Floating, protection circuit against defibrillator effect

Input Circuit Current: ≤0.1μA

Input Impedance: ≥50MΩ

Patient Current Leakage: <10μA

Calibrating Voltage: 1mV±2%

Skin Voltage Tolerance: ≥±500mV

Time Constant: ≥3.2s

Frequency Response: 0.05 Hz~250Hz

Noise Level: <15μVp-p

Sensitivity Threshold: ≤20μV

Signal Channel Interference: ≤0.5mm

Printer: Thermal printer

Paper: 80mmx20m, roll

Page Speed: 6.25, 12.5, 25, 50mm/s (±3%)

Sensitivity Printer: 10mm/mV (AUTO), 2.5, 5, 10, 20mm/mV

CPU: 32 bits

Safe Class: GB9706.1, Class I, Type CF

Power Supply: AC 220V (±10%), 50Hz±1Hz, Power ≤60VA

AC 85~265V, 50/60Hz

DC14.8V (2200mAh), rechargeable Li-ion battery

Dimension: 310mm×270mm×73mm

Weight: 1.45kg (with battery)

Company Information



Our company is a leading exporter and supply chain service provider of medical machine with more than 8 years' experience.
Our main products include X-ray machine, B ultrasound scanners, ECG, patient monitor, ICU equipment, Lab equipment, and other related medical disposables. We have exported products to more than 50 countries and built long term partnerships with clients.
Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.



Our Services


  • Top Quality: We have strict quality control system and enjoy good reputation in the market.

  • Excellent Service: We treat clients as friend and aim at building long term business relatiionship.
  • OEM Accepted : We Can print your own logo on the products.
  • Unbeatable Price: We always ensure high price performance to benefit our customers.
  • Timely Delivery: Your order shall be shipped once finished .
  • After-Sale Service:All Products Have One Year Warranty.

FAQ


  • How to buy your products ?Do you have distributor in our country?

You can buy the products from our company directly.Normally the procedure is:Sign the contact ,payment  byT/T, contact the shipping company to delivery the goods to your country.

  • What is the warranty?

The free warranty is one year from the day of Commissioning qualified.

  • Can we visit your country ?

Of course,we will prepare for everything in advance if it is necessary .Generally,it is require that customers must have build agency relationship or business relationship with our company.

  • How long is the validity of quotation?

Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .

  • Do you have the CE certificate ?

Yes, most of our products have the CE certificate.
