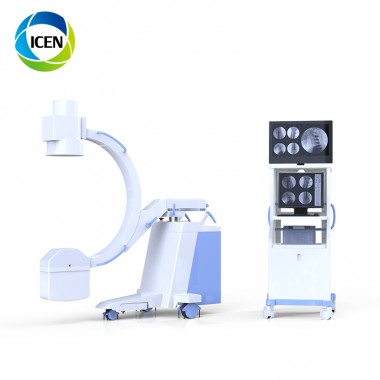

IN-D112 High frequency portable veterinary x-ray scanning machine for human and vet
1. Fluoroscopic Capacity
Max rated capacity: Tube Current 4mA, Tube Voltage 110kV
Automatic Fluoroscopy: Tube Voltage:40kV~110kV Adjust Automatically
Tube Current : 0.3mA~4mA set manually
Manual Fluoroscopy : Continuous Tube Voltage:40kV~110kV
Continuous Tube Current : 0.3mA~4mA
Pulse Fluoroscopy : Continuous Tube Voltage 40kV~110kV
Continuous Tube Current 4.1mA~8mA
2. Photography Capacity
Max rated capacity: 3.5 KW
Tube Voltage and Current Combination: 40kV~49kV 1 ~125 mAs
ⅢClause/ Specification
Section A Main Digital Radiography System |
1.0 X-ray Generator Each set of X-ray generator unit for general Fluoroscopy and Radiography with at least the following features: |
1.1 3-phase ,high frequency converter / inverter, multi-pulse and microprocessor control |
1.2 Nominal power output 3.5 KW |
1.3 Tube Voltage :40KV~110KV, Tube current output of 20~63mA ,1.0 mAs~125mAs |
1.4 Exposure time range :from 2 ms or shorter to 2 seconds or longer |
1.5 Suitable to operation of dual-focus X-ray tube : Large Focus :1.5mm,Small Focus :0.6 mm |
1.6 Automatic line voltage compensation |
1.7 Automatic exposure control with manual override |
1.8 Digital display of operator pre-set exposure data |
1.9 Digital display of actual exposure data after X-ray exposure |
1.10 Self-diagnostic functions with digital display of error codes |
1.11 Tube-overload indication and protection on the control panel |
1.12 User programmed radiographic exposure techniques with the following features: |
1.13 Unique double foot brake controller design makes it convenient to control the instrument inside and outside the operation room. This design can also protect the health care professionals by reducing the opportunity to come into contact with the radiation. |
1.14 Each exposure programme includes at least 2 additional selections for appropriate patient size compensation ( normal figure, fat figure,thin figure, adult, child , normal position ,lateral position) |
1.15 The exposure programmes are user programmable |
1.16 Selection of exposure programmes are by touch-controls |
1.17 Alphanumeric display of selected anatomical exposure programme |
1.18 Integrated radiation exposure switch on generator control console |
1.19 All necessary protective circuits are incorporated . |
2.0 X-ray Tube |
