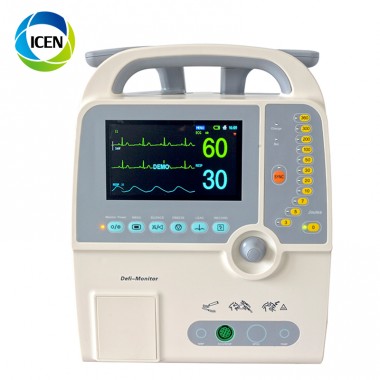

IN-C029 Medical Equipment aed defibrillator /aed automated external defibrillator unit
Physical characteristics for aed automated external defibrillator unit:
Main unit: | Portable |
Dimensions: | L320xW205xH410 |
Weight: | 9.8kg |
Technical specifications for aed automated external defibrillator unit:
DEFIBRILLATOR |
(1) Defibrillator type Manual, Synchronized, Asynchronized |
(2) Out put waveform Monophasic technology |
(3) Energy accuracy ∠+1% |
(4) Energy selection 0,3,5,7,10,20,30,50,100,200,300,360 joule(normal at a resistance of 50) |
(5) Charging time Maximum 8 seconds to 360 Joules |
(6) Standard Adult/Pediatric Paddles Reusable extermal adult paddles(pediatric paddles integrated).Power requirements. |
(a) AC Power supply 110V, 60 Hz /220V,50 Hz |
(b) Vehicle Voltage DC 12V |
Internal Battery Backup |
(1) Battery type Rechargeable lead-acid battery/ lithium battery(optional) |
(2) Charging time Time-Minimum of 4 hours for full charging |
(3) Battery charging During AC Power Supply operation of the device. |
(4) Charging /Low Battery Indication Red LED |
(5) Battery Capacity 100% of the battery will provide 120 mins of monitoring; and 30 discharges at 360 joules. |
Display |
LED Dimensions 7’diagonal {155mm*88mm} |
Type High resolution true-color graphic LED |
Resolution 480X234 |
ECG | |
ECG lead: | Ⅰ, Ⅱ, Ⅲ, AVR, AVL, AVF, V1~V6, GND |
S-T segment analysis: | -2.0~2.0mv |
Arrhythmia analysis: | yes |
Protegtion: | With stand 4000vAc/50Hz voltage in isolation and work against eletrosurgical interence and defibrillation |
NIBP | |
Working mode: | Manual/Automatic/stat(5 minutes) |
Method: | Automatic oscillation |
Cufftype: | standard Adult; optional Pediatric/Neonatal |
Temperature | |
Measurement range | 20~45°C |
Resolution | 0.1°C |
Pulse Oximetry | (spO2) |
Display : | spo2 value,pulse histongram,waveform,Pulse |
Range: | 0~99%for adult,pediatric and neonatal patients |
Probe: | standard adult finger clip optional pediatric Y-type clip and neonatal wrap |
Standard parameter & configuration: |
ECG/ RESP,/SPO2,/TEMP,/PR,/NIBP/DEFIBRILLATOR |
Optional parameter |
Recorder |
Pulse range:Pulse range: 0-255bpm Respiration: Measurement method: Thoracic impedance
Our company is a leading exporter and supply chain service provider of medical machine with more than 8 years' experience.
Our main products include X-ray machine, B ultrasound scanners, ECG, patient monitor, ICU equipment, Lab equipment, and other related medical disposables. We have exported products to more than 50 countries and built long term partnerships with clients.
Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.
Top Quality: We have strict quality control system and enjoy good reputation in the market.
After-Sale Service:All Products Have One Year Warranty.
FAQ
How to buy your products ?Do you have distributor in our country?
You can buy the products from our company directly.Normally the procedure is:Sign the contact ,payment byT/T, contact the shipping company to delivery the goods to your country.
The free warranty is one year from the day of Commissioning qualified.
Of course,we will prepare for everything in advance if it is necessary .Generally,it is require that customers must have build agency relationship or business relationship with our company.
Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .
Yes, most of our products have the CE certificate.
