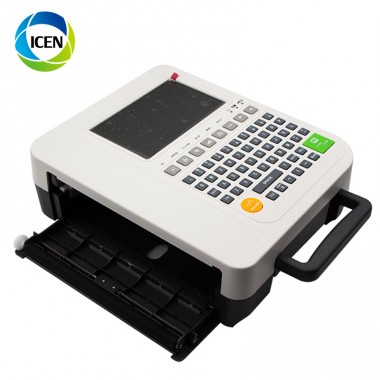

IN-H022 12 channel schiller ecg electrodes machine with ecg paper

Function :

1.12 channel ECG machine with interpretation
2.7" color TFT LCD display
3.Simultaneous 12 leads acquisition and (Manual/Auto)
recording with high resolution thermal printer
4.Manual/Auto working modes
5.Use digital isolation technology and digital signal processing
6.Baseline stabilization inspection
7.Full alphanumeric silicon keyboard
8.Support U disk storage
9.Support USB function (Optional)

Technical Specifications:
Lead: Standard 12 leads
Acquisition: Simultaneous 12 leads
A/D Converter: 14bit
Sampling Rate: 1000Hz
Working Mode: Manual/Auto
Interference Filter: AC Filter and EMG Filter
CMMR: ≥100dB (with AC filter)
Input Circuit: Floating, protection circuit against defibrillator effect
Input Circuit Current: ≤0.1μA
Input Impedance: ≥50MΩ
Patient Current Leakage: <10μA
Calibrating Voltage: 1mV±2%
Skin Voltage Tolerance: ≥±500mV
Time Constant: ≥3.2s
Frequency Response: 0.05 Hz~250Hz
Noise Level: <15μVp-p
Sensitivity Threshold: ≤20μV
Signal Channel Interference: ≤0.5mm
Printer: Thermal printer
Paper: 215mmx20m, roll
Page Speed: 6.25, 12.5, 25, 50mm/s (±3%)
Sensitivity Printer: 10mm/mV (AUTO), 2.5, 5, 10, 20mm/mV
CPU: 32 bits
Safe Class: GB9706.1, Class I, Type CF
Power Supply: AC 220V (±10%), 50Hz±1Hz, Power ≤60VA
AC 85~265V, 50/60Hz
DC14.8V (2200mAh), rechargeable Li-ion battery
Dimension: 310mm×220mm×89mm
Weight:2kg (with battery)

Our company is a leading exporter and supply chain service provider of medical machine with more than 8 years' experience.
Our main products include X-ray machine, B ultrasound scanners, ECG, patient monitor, ICU equipment, Lab equipment, and other related medical disposables. We have exported products to more than 50 countries and built long term partnerships with clients.
Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.

• Top Quality: We have strict quality control system and enjoy good reputation in the market.
• Excellent Service: We treat clients as friend and aim at building long term business relatiionship.
• OEM Accepted : We Can print your own logo on the products.
• Unbeatable Price: We always ensure high price performance to benefit our customers.
• Timely Delivery: Your order shall be shipped once finished .
• After-Sale Service:All Products Have One Year Warranty.

• How to buy your products ?Do you have distributor in our country?

You can buy the products from our company directly.Normally the procedure is:Sign the contact ,payment  byT/T, contact the shipping company to delivery the goods to your country.

• What is the warranty?

The free warranty is one year from the day of Commissioning qualified.

• Can we visit your country ?

Of course,we will prepare for everything in advance if it is necessary .Generally,it is require that customers must have build agency relationship or business relationship with our company.

• How long is the validity of quotation?

Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .

• Do you have the CE certificate ?

Yes, most of our products have the CE certificate.
