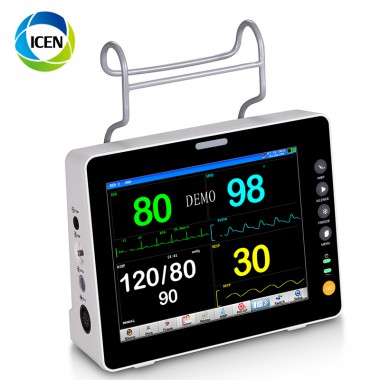

IN-C004-1 8 inch multiparameter IBP mini ambulance patient monitor ecg equipment for sale

*Waterproof design, resistance to dropping (1 meter)
*Low power consumption, fanless structure which
creates no noise
* Support external 13-20V DC power, continuously working
for 5.5 hours above on battery backup, full charge with 2.5
hours, suitable for Ambulance, Emergency Transport
* Display mode: Big font, trends review, 7 leads ECG waveform
on same screen, and etc
*15 kinds of arrhythmia analysis, 15 kinds of drug concentration
analysis
* Anti-electrosurgical unit (300W), anti-defibrillation (360J),
suitable for Operating Room, General Ward
* Digital SpO2 technology, excellent anti- interference
performance, low perfusion (0.1%)

ECG
Lead: Standard 3/5 lead
Lead Mode: 5 Leads (RA, LA, LL, RL,V)
Lead Selection: I, II, III, avR, avL, avF, V
Lead Mode: 3 Leads (RA, LA, LL)
Lead Selection: I, II, III,
Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV
HR and Alarm Range:
Adult: 15 ~ 300 bpm
Ped/Neo: 15 ~ 350 bpm
Accuracy: ±1% or±1bpm, which is greater
Resolution: 1 bpm
Sensitivity: > 200 (uVp-p)
Differential Input Impedance: > 5 MΩ
Bandwidth:
Surgery 1 ~ 20 Hz
Monitor 0.5 ~ 40 Hz
Diagnostic 0.05 ~ 130 Hz
CMRR:
Monitor > 100 dB
Operation > 100 dB
Diagnosis > 90 dB
Electrode Offset Potential: ±300mV
Range: ±2 mV ~ ±700 mV
Width: 0.1 ms ~ 2 ms
Rise time: 10 us ~ 100 us
ST Segment Monitoring Range:
Measurement Range: -2.0 ~ +2.0 mV
Measurement Accuracy: -0.8 ~ +0.8 mV
Measurement Error: ±0.02 mV or ±10%

RESP
Method: Impedance Between RA-LL or RA-LA
Measuring Impedance Range: 0.3~3 Ω
Base line Impedance Range: 200~4 KΩ
Bandwidth: 0.1~2.5Hz
Resp. Rate:
Measuring and Alarm Range:
Adult: 2 ~ 120 BrPM
Neo/Ped: 2 ~ 150 BrPM
Resolution: 1 BrPM
Accuracy: ±2 BrPM
Apnea Alarm: 10 ~ 40 S

NIBP
Method: Oscillometric
Mode: Manual, Auto, STAT
Measuring Interval in Auto Mode:
1, 2, 3, 4, 5, 10, 15, 30, 60, 90,120, 180, 240,480 (Min)
Measuring Period in STAT Mode: 5 Min
Pulse Rate Range: 40 ~ 240 bpm
Measuring and Alarm Range:
Adult Mode
SYS 40 ~ 270 mmHg
DIA 10 ~ 215 mmHg
