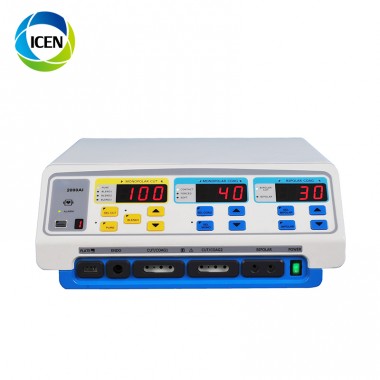

IN-I2000AI portable surgical Human electrocautery unit diathermy machine
Main Features
-Max 400W Electrosurgical Generator, with mono-polar and bipolar function.
-Nine working modes: pure cut, blend1, blend2, blend3, contact coag, forced coag, soft coag, bipolar coag, bipolar cut.
-Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology(under water TUR), oncology, neurosurgery, etc.
-Microprocessor controlled, LCD touch screen display. With audible and visual indicators and errors codes during the process of outputting.
-Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.
-Both hand and foot controlled.
-Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be individually configured.
-The unit always remember the last setting when it turned off.
-Remote control function. The surgeon can adjust the outputs by power control ESU pencil.
-The ESU unit can be connected with laparoscope and endoscope, etc.
-Protection against over-voltage and over-current.
-Defibrillation protected.
-Convection refrigeration without ventilator.
-Mounted on a 4 wheels cart(optional).
-Have RS-232 serial port
-Meets the requirements of international safety standards EN60601-1 and EN60601-2.
Technical Specifications
-Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)
-Power rating: 1100VA±10%
-Power Consumption: ≤1100VA
Ralated Power output:
Function | Working modes | Power output (Max) | load | Frequency | V-PP | Crest Factor |
Monopolar Cut | Pure cut | 400W | 800Ω |
512KHz | 2.6kV | 1.5 |
Blend1 | 300W | 800Ω | 4KV | 1.8 | ||
Blend2 | 200W | 800Ω | 4.2KV | 2.1 | ||
Blend3 | 150W | 800Ω | 4KV | 2.7 | ||
Monopolar Coagulation | Spray | 80W | 800Ω | 5.3KV | 7.4 | |
Forced | 120W | 800Ω | 5KV | 3.8 | ||
Soft | 120W | 800Ω | 720V | 1.6 | ||
Bipolar | Standard coag | 70W | 200Ω | 1024KHz | 550V | 1.6 |
Macro-bipolar | 120W | 200Ω | 350V | 1.6 |
Our company is a leading exporter and supply chain service provider of medical machine with more than 8 years' experience.
Our main products include X-ray machine, B ultrasound scanners, ECG, patient monitor, ICU equipment, Lab equipment, and other related medical disposables. We have exported products to more than 50 countries and built long term partnerships with clients.
Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.
Top Quality: We have strict quality control system and enjoy good reputation in the market.
After-Sale Service:All Products Have One Year Warranty.
FAQ
How to buy your products ?Do you have distributor in our country?
You can buy the products from our company directly.Normally the procedure is:Sign the contact ,payment byT/T, contact the shipping company to delivery the goods to your country.
The free warranty is one year from the day of Commissioning qualified.
Of course,we will prepare for everything in advance if it is necessary .Generally,it is require that customers must have build agency relationship or business relationship with our company.
Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .
Yes, most of our products have the CE certificate.
